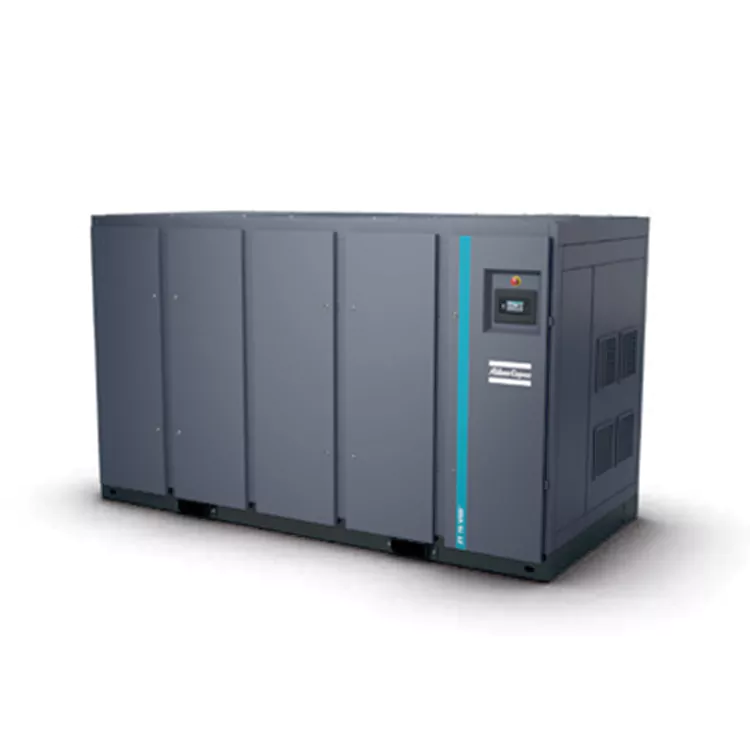

Tuku Kompresor Screw Bebas Minyak Anti-Corrosion 55-900kw saka DECHUAN kanggo njamin kaslametan peralatan jangka panjang ing lingkungan pangolahan laut lan kimia sing atos. Nampilake motor TEFC IP55 sing kasar lan jaket pendingin sing kandel, mesin iki dirancang kanggo nolak asap asam lan partikel kimia ing udara.
Nalika nganyarke baris produksi ing zona kimia atos, ngimpor saka profesional China 55-900kw Anti-Corrosion Oil-Free Screw Compressor supplier kaya DECHUAN menehi kekiatan perlu. Saben komponen sing kena kelembapan digawe saka baja tahan karat premium utawa diolah nganggo lapisan pelindung khusus kanggo ngilangi karat struktural.
Kompresor udara standar sing dipasang ing pabrik kimia utawa zona manufaktur pesisir kanthi cepet nandhang rotor pitted, tabung pendingin sing karat, lan sirkuit cendhak listrik sing disebabake dening kelembapan lingkungan lan gas korosif. Iki nyebabake kebocoran udara sing kerep, efisiensi volumetrik mudhun, lan kegagalan sing luwih larang.
Kompresor nyedhiyakake perlindungan lingkungan sing kuat:
• Paket Tabung Stainless Steel Premium: Baja tahan karat kelas laut tahan pitting lan korosi stres kimia sajrone siklus operasi sing dawa.
• TEFC IP55 Sealed Electricals: Rampung pamblokiran bledug, udhara segara asin, lan vapors kimia saka tekan nduwurke tumpukan motor sensitif utawa sambungan listrik.
• Advanced Inert Rotor Coating: A lapisan protèktif dhuwur-ikatan ngalangi oksidasi rotor, tetep kamar komprèsi resik lan njaga toleransi pas.
Sistem udara industri sing beroperasi ing zona pangolahan kimia utawa fasilitas pesisir ngadhepi paparan asam udhara, semprotan uyah, lan kelembapan korosif. Unit udara standar bakal cepet nandhang karat lan pitting, sing nyebabake bocor udara lan kunci rotor. Kompresor Screw Bebas Minyak 55-900kw khusus iki dibangun kanggo tahan:
• Coolers Stainless Steel Full & Unit misahake: Kabeh exchangers panas internal lan separator banyu labyrinth sing dibangun saka dhuwur-bahan stainless steel, rampung mbusak ketularan flake teyeng.
• Proteksi Lapisan Rotor Lanjut: Rotor sekrup dual nduweni lapisan sing diikat kanthi molekul sing nahan karusakan kimia saka gas industri sekitar.
• Kabinet Listrik IP55 sing disegel: Kabeh kandang kontrol lan drive frekuensi variabel disegel kanthi lengkap marang gas asam lan udhara maritim asin, nglindhungi elektronik kritis.
• Corrosion Resistance Level: Marine lan bahan kimia industri abot
• Power Range Pilihan: 55kW kanggo 900kW heavy-tugas designs
• Pangiriman Volume Udara: 4,2 nganti 148,5 m³ / min output terus-terusan
• Konstruksi sing luwih adhem: baja tahan karat sing dilas robot kanthi area permukaan sirip bintang sing ditambahi
ZR/ZT 55-90 (FF) STD
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 55 -7.5STD | 7.5 | 169.7 | 10.2 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -8.6STD | 8.6 | 156.6 | 9.4 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -10 STD | 10 | 140.9 | 8.5 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 75 -7.5STD | 7.5 | 224.7 | 13.5 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -8.6STD | 8.6 | 214.9 | 12.9 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -10 STD | 10 | 205.0 | 12.3 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 90 -7.5STD | 7.5 | 267.2 | 16.0 | 90 | 72 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -8.6STD | 8.6 | 250.9 | 15.1 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -10 STD | 10 | 236.5 | 14.2 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZT 55 -7.5STD | 7.5 | 166.4 | 10.0 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55 -8.6STD | 8.6 | 153.2 | 9.2 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55-10STD | 10 | 137.6 | 8.3 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 75 -7.5STD | 7.5 | 221.3 | 13.3 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75 -8.6STD | 8.6 | 211.6 | 12.7 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75-10STD | 10 | 201.6 | 12.1 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 90 -7.5STD | 7.5 | 263.9 | 15.8 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90 -8.6STD | 8.6 | 247.5 | 14.9 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90-10STD | 10 | 233.1 | 14.0 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
ZR/ZT 75-90 VSD (FF) STD
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD -8.6 STD | 8.6 | 74.7-229.4 | 4.5-13.8 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 75 VSD -10.4 STD | 10.4 | 81.7-202.9 | 4.9-12.2 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 90 VSD -8.6 STD | 8.6 | 74.1-282.5 | 4.4-16.9 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZR 90 VSD -10.4 STD | 10.4 | 75.5-250.5 | 4.5-15.0 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZT 75 VSD -8.6 STD | 8.6 | 71.2-226.0 | 4.3-13.6 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 75 VSD -10.4 STD | 10.4 | 78.2-199.6 | 4.7-12.0 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 90 VSD -8.6 STD | 8.6 | 70.6-279.1 | 4.2-16.7 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
| ZT 90 VSD -10.4 STD | 10.4 | 72.0-247.1 | 4.3-14.8 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
Kondisi referensi kinerja kanggo unit diukur miturut Lampiran C, edisi kaping 4 (2009) saka ISO 1217:
· Kelembapan relatif: 0%
· Tekanan inlet absolut: 1 bar
· Suhu inlet: 20°C Discharge rate (FAD) diukur ing tekanan operasi ing ngisor iki:
Tipe kacepetan konstan:
· -7,5 bar jinis: 7 bar
· -8,6 bar jinis: 7 bar
· -10 bar jinis: 9 bar
Tipe VSD:
· -8,6 bar jinis: 7 bar
· -10,4 bar jinis: 9 bar
· (2) Tingkat tekanan swara emisi bobot kelas A saka workstation (LpWSAd). Diukur miturut ISO 2151:2004 (nggunakake metode scanning intensitas swara 150 9614/2). Faktor koreksi sing mentas ditambahake yaiku nilai sing ora mesthi (KpAd), sing cocog karo kode tes.
· (3) Bobot mung kanggo referensi; bobot nyata sing diwenehake bakal menang.
ZR/ZT 110-160 (FF) STD
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 110 -7.5 STD | 7.5 | 318.2 | 19.1 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -8.6 STD | 8.6 | 297.5 | 17.8 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -10 STD | 10 | 277.6 | 16.7 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 132 -7,5 STD | 7.5 | 362.9 | 21.8 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -8.6 STD | 8.6 | 338.5 | 20.3 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -10 STD | 10 | 314.4 | 18.9 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 145 -7,5 STD | 7.5 | 392.9 | 23.6 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -8.6 STD | 8.6 | 364.1 | 21.8 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -10 STD | 10 | 350.8 | 21.0 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 160 -7.5 STD | 7.5 | 434.0 | 26.0 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -8.6 STD | 8.6 | 418.3 | 25.1 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -10 STD | 10 | 399.0 | 23.9 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZT 110 -7.5 STD | 7.5 | 315.0 | 18.9 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -8.6 STD | 8.6 | 294.2 | 17.6 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -10 STD | 10 | 274.3 | 16.5 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 132 -7.5 STD | 7.5 | 359.6 | 21.6 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -8.6 STD | 8.6 | 335.3 | 20.1 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -10 STD | 10 | 311.1 | 18.7 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 145 -7.5 STD | 7.5 | 389.6 | 23.4 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -8.6 STD | 8.6 | 360.8 | 21.6 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -10 STD | 10 | 347.5 | 20.9 | 145 | 79 | 3126 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -7.5 STD | 7.5 | 430.6 | 25.8 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -8.6 STD | 8.6 | 414.9 | 24.9 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -10 STD | 10 | 395.6 | 23.7 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
ZR/ZT 110-160 VSD (FF) STD
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR110VSD-8.6 STD | 8.6 | 100.5-319.3 | 6.0-19.2 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR110VSD-10.4 STD | 10.4 | 167.1-292.1 | 10.0-17.5 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-8.6 STD | 8.6 | 107.1-357.1 | 6.5-21.4 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-10.4 STD | 10.4 | 166.6-331.0 | 10.0-19.9 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR160VSD-8.6 STD(V1) | 8.6 | 123.3-390.0 | 7.4-23.4 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-10.4 STD(V1) | 10.4 | 166.6-357.8 | 10.0-21.5 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-8.6 STD(V2) | 8.6 | 123.3-411.0 | 7.4-24.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-10.4 STD(V2) | 10.4 | 166.6-377.6 | 10.0-22.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZT 110 VSD-8.6 | 8.6 | 99.9-327.6 | 6.0-19.2 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 110 VSD-10.4 | 10.4 | 165.5-291.9 | 9.9-17.5 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-8.6 | 8.6 | 124.8-357.5 | 7.5-21.4 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-10.4 | 10.4 | 164.9-331.2 | 9.9-19.9 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-8.6 STD(V1) | 8.6 | 143.9-388.8 | 8.6-23.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-10.4 STD(V1) | 10.4 | 164.9-358.2 | 9.9-21.5 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-8.6 STD(V2) | 8.6 | 146.9-438.2 | 8.8-26.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-10.4 STD(V2) | 10.4 | 164.9-378.1 | 9.9-22.7 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
Miturut ISO 1217 Annex C, 4th Edition (2009), kondisi referensi kinerja unit kaya ing ngisor iki:
· Kelembapan relatif: 0%
· Tekanan inlet absolut: 1 bar
· Suhu mlebu: 20°C
FAD pamindahan diukur ing tekanan operasi ing ngisor iki:
Model kacepetan konstan:
-Model 7,5 bar: 7 bar
-8.6 bar model: 7 bar
-10 bar model: 9 bar
Model VSD:
-8.6 bar model: 7 bar
-Model 10,4 bar: 9 bar
(2) Tingkat tekanan swara emisi bobot kelas A saka workstation (LpWSAd). Diukur miturut ISO 2151:2004 (metode scanning intensitas swara ISO 9614/2). Faktor koreksi sing mentas ditambahake KpAd ora mesthi, tundhuk karo kode tes.
(3) V1=380V, V2=400V.
(4) Bobot mung kanggo referensi; bobot nyata bakal menang.
ZR/ZT 200-275 (FF)
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 200 -7.5 | 7.5 | 602.3 | 36.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -8.6 | 8.6 | 552.1 | 33.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -10 | 10 | 506.6 | 30.0 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 250 -7.5 | 7.5 | 718.0 | 43.1 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -8.6 | 8.6 | 684.3 | 41.0 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -10 | 10 | 622.8 | 37.4 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 275 -7.5 | 7.5 | 774.4 | 46.5 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -8.6 | 8.6 | 718.0 | 43.1 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -10 | 10 | 683.9 | 41.0 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -13 | 13 | 561.8 | 33.7 | 275 | 70 | 5250 | 6150 | 5040 | 1662 | 2008 |
| ZT 200 -7.5 | 7.5 | 567.1 | 34.0 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -8.6 | 8.6 | 519.5 | 31.2 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -10 | 10 | 497.4 | 29.8 | 200 | 78 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 250 -7.5 | 7.5 | 711.5 | 42.7 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -8.6 | 8.6 | 676.8 | 40.6 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -10 | 10 | 614.3 | 36.9 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 275 -7.5 | 7.5 | 745.4 | 44.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275 -8.6 | 8.6 | 711.5 | 42.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275-10 | 10 | 676.4 | 40.6 | 275 | 78 | 6030 | 7080 | 5040 | 1662 | 2108 |
ZR/ZT 250-315 VSD (FF)
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 250 VSD -8.6 | 8.6 | 242.6-714.4 | 14.6-42.9 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 250 VSD -10.4 | 10.4 | 234.2-640.2 | 14.1-38.4 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD -8.6 | 8.6 | 242.6-788.1 | 14.6-47.3 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD -10.4 | 10.4 | 234.2-700.0 | 14.1-42.0 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZT 250 VSD -8.6 | 8.6 | 238.0-696.9 | 14.3-41.8 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 250 VSD -10.4 | 10.4 | 386.0-633.4 | 23.2-38.0 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -8.6 | 8.6 | 238.0-739.4 | 14.3-44.4 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -10.4 | 10.4 | 386.0-681.0 | 23.2-40.9 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
- Kelembapan relatif: 0%
- Tekanan inlet absolut: 1 bar
-Suhu inlet: 20 ° ℃
Tingkat Discharge (FAD) diukur ing tekanan operasi ing ngisor iki
Tipe kacepetan konstan:
-7,5 bar jinis: 7 bar
-8.6 bar jinis: 7 bar
-10 bar jinis: 9 bar
Tipe VSD:
-8.6 bar jinis: 7 bar
-10,4 bar jinis: 9 bar
(2) Tingkat tekanan swara emisi bobot kelas A saka workstation (LpWSAd).
Diukur miturut ISO 2151:2004 (nggunakake 150 9614/2 (metode scanning intensitas swara).
Faktor koreksi sing mentas ditambahake yaiku nilai sing ora mesthi (KpAd), sing cocog karo kode tes.
(3) Bobot mung kanggo referensi; bobot nyata sing diwenehake bakal menang.
ZR 300-750
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 300 -7.5 | 7.5 | 774.6 | 46.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -8.6 | 8.6 | 725.7 | 43.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -10 | 10 | 695.1 | 41.7 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -7.5 | 7.5 | 848.0 | 50.9 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -8.6 | 8.6 | 793.1 | 47.6 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -10 | 10 | 766.6 | 46.0 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 355 -7.5 | 7.5 | 939.1 | 56.3 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -8.6 | 8.6 | 877.1 | 52.6 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -10 | 10 | 839.6 | 50.4 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 400 -7.5 | 7.5 | 1034.2 | 62.1 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -8.6 | 8.6 | 963.9 | 57.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -10 | 10 | 930.5 | 55.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 425 -7.5 | 7.5 | 1143.9 | 68.6 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 425 -8.6 | 8.6 | 1063.1 | 63.8 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 450 -7.5 | 7.5 | 1275.7 | 76.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -8.6 | 8.6 | 1191.8 | 71.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -10 | 10 | 1106.3 | 66.3 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 500 -7.5 | 7.5 | 1399.1 | 78.3 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -8.6 | 8.6 | 1305.2 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -10 | 10 | 1217.8 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 630 -7.5 | 7.5 | 1715.0 | 102.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -8.6 | 8.6 | 1595.0 | 95.7 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -10 | 10 | 1484.1 | 88.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 750 -7.5 | 7.5 | 2046.2 | 122.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -8.6 | 8.6 | 1827.4 | 109.6 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -10 | 10 | 1696.7 | 101.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 |
ZR 355-900VSD
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 355 VSD -8.6 | 8.6 | 371.2-1037.5 | 22.3-62.2 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 355 VSD -10.4 | 10.4 | 374.4-942.4 | 22.5-56.5 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 400 VSD -8.6 | 8.6 | 371.2-1120.9 | 22.3-67.3 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 400 VSD -10.4 | 10.4 | 374.4-998.6 | 22.5-59.9 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 500 VSD -10.4 | 10.4 | 374.4-1177.9 | 22.5-70.7 | 81 | 81 | 9190 | 4075 | 2120 | 2400 | |
| ZR 700 VSD -8.6 | 8.6 | 374.4-2061.8 | 54.9-123.7 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 700 VSD -10.4 | 10.4 | 849.7-1840.5 | 51.0-110.4 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 900 VSD -8.6 | 8.6 | 930.7-2475.4 | 55.8-148.5 | 83 | 83 | 12600 | 4660 | 2120 | 2470 | |
| ZR 900 VSD -10.4 | 10.4 | 864.8-1873.2 | 51.9-112.4 | 83 | 83 | 12600 | 4660 | 2120 | 2470 |
Kondisi referensi kinerja kanggo unit diukur miturut Lampiran C, edisi kaping 4 (2009) saka ISO 1217:
· Kelembapan relatif: 0%
· Tekanan inlet absolut: 1 bar
· Suhu inlet: 20°C Discharge rate (FAD) diukur ing tekanan operasi ing ngisor iki:
Tipe kacepetan konstan:
· -7,5 bar jinis: 7 bar
· -8,6 bar jinis: 7 bar
· -10 bar jinis: 9 bar
Tipe VSD:
· -8,6 bar jinis: 7 bar
· -10,4 bar jinis: 9 bar
· (2) Tingkat tekanan swara emisi bobot kelas A saka workstation (LpWSAd). Diukur miturut ISO 2151:2004 (nggunakake metode scanning intensitas swara 150 9614/2). Faktor koreksi sing mentas ditambahake yaiku nilai sing ora mesthi (KpAd), sing cocog karo kode tes.
· (3) Bobot mung kanggo referensi; bobot nyata sing diwenehake bakal menang.
ZR 200X-400X
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 200X -7.5 | 7.5 | 623.1 | 37.4 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -8.6 | 8.6 | 601.9 | 36.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -10 | 10 | 551.7 | 33.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 250X -7.5 | 7.5 | 717.7 | 43.1 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 250X -8.6 | 8.6 | 683.8 | 41.0 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 315X -7.5 | 7.5 | 939.0 | 56.3 | 315 | 76 | 7950 | 3700 | 2120 | 2400 |
| ZR 355X -7.5 | 7.5 | 1034.2 | 62.1 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -8.6 | 8.6 | 963.5 | 57.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -10 | 10 | 930.2 | 55.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 400X -7.5 | 7.5 | 1143.8 | 68.6 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
| ZR 400X -8.6 | 8.6 | 1062.7 | 63.8 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 90 VSD+ | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 110 VSD+ | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 132 VSD+ | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 160 VSD+ | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 75 VSD+ | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 90 VSD+ | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 110 VSD+ | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 132 VSD+ | 10.4 | 78.8-377.5 | 4.7-22.7 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-409.0 | 4.7-24.5 | 74 | 3150 | 3400 | 1654 | 2000 |
| ZT 160 VSD+ | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3150 | 3400 | 1654 | 2000 |
ZR/ZT 75-160 VSD+ FF
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ FF | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 90 VSD+ FF | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 110 VSD+ FF | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 132 VSD+ FF | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 145 VSD+ FF | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZR 160 VSD+ FF | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZT 75 VSD+ FF | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 90 VSD+ FF | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 110 VSD+ FF | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 132 VSD+ FF | 10.4 | 107.0-377.5 | 6.4-22.7 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 145 VSD+ FF | 10.4 | 118.0-409.0 | 7.1-24.5 | 74 | 3790 | 4085 | 1654 | 2000 |
| ZT 160 VSD+ FF | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3790 | 4085 | 1654 | 2000 |
Kondisi referensi kinerja kanggo unit diukur miturut Lampiran C, edisi kaping 4 (2009) saka ISO 1217:
· Kelembapan relatif: 0%
· Tekanan inlet absolut: 1 bar
· Suhu inlet: 20°C Discharge rate (FAD) diukur ing tekanan operasi ing ngisor iki:
Tipe kacepetan konstan:
· -7,5 bar jinis: 7 bar
· -8,6 bar jinis: 7 bar
· -10 bar jinis: 9 bar
Tipe VSD:
· -8,6 bar jinis: 7 bar
· -10,4 bar jinis: 9 bar
· (2) Tingkat tekanan swara emisi bobot kelas A saka workstation (LpWSAd). Diukur miturut ISO 2151:2004 (nggunakake metode scanning intensitas swara 150 9614/2). Faktor koreksi sing mentas ditambahake yaiku nilai sing ora mesthi (KpAd), sing cocog karo kode tes.
· (3) Bobot mung kanggo referensi; bobot nyata sing diwenehake bakal menang.
• Marine-Grade Desiccant Placement: Kapasitas dhuwur ngemas Kelembapan-nresep diselehake nang sasis inti kanggo nyegah kondensasi sak segara transit.
• Vapor Corrosion Inhibitor (VCI) Shrink Wrap: Kabeh 55-900kw Anti-Corrosion Oil-Free Screw Compressor wis tightly kebungkus ing film protèktif VCI specialized kanggo mblokir online segara asin.
• Fumigated Wooden Crate Reinforcement: Bolted dhateng skids baja nglukis lan encased ing crates kayu kanthi terlampir kanggo mesthekake pangiriman karusakan-free.
A: Nggih. Kombinasi kandang weatherized tugas abot, sistem listrik sing dirating IP55, lan internal baja tahan karat ngidini unit bisa digunakake kanthi andal ing setelan pesisir sing asor lan dhuwur.
A: Awak pemisah kelembapan kabeh digawe saka baja tahan karat. Ora ana bagean sing obah utawa bolong internal sing alus sing bisa clog utawa corrode nalika kapapar kondensat atmosfer asam.
A: lapisan majeng kita Applied liwat ikatan molekul suhu dhuwur, nggawe alangi kimia non-keropos. Uap asam sing ditarik menyang Kompresor Screw Bebas Minyak Anti-Karat 55-900kw ngliwati permukaan sing mulus tanpa ngiket utawa ngrusak logam sing ndasari.
Hak Cipta © 2025 Decuan Compressor (Shanghai) Co., Ltd. Kabeh Hak Dilindungi.
