DECHUAN nawakake Kompresor Screw Bebas Minyak Eco 55-900kw kanggo pengadaan global ijo. Bebas saka lenga lan dirancang kanthi pilihan pemulihan panas sampah, sistem iki mbantu tanduran sing lestari nyilikake jejak lingkungan. pesen saiki!
Kanggo mbangun garis manufaktur sing ramah lingkungan sing tundhuk karo mandat karbon dual global, tuku saka pemasok Kompresor Screw Bebas Minyak 55-900kw China sing disertifikasi minangka pilihan sing cerdas. Desain bebas lenga DECHUAN ngilangi kabutuhan pembuangan minyak, mbantu pabrik global nggayuh tujuan kelestarian perusahaan sing ketat.
Luwih saka 80% energi listrik sing dikonsumsi dening kompresor udara diowahi langsung dadi panas. Ing persiyapan standar, energi termal iki mung diusir menyang lingkungan liwat menara cooling utawa radiator, nalika fasilitas mbuwang dhuwit ekstra kanggo gas alam utawa listrik kanggo panas banyu proses industri utawa siram buruh.

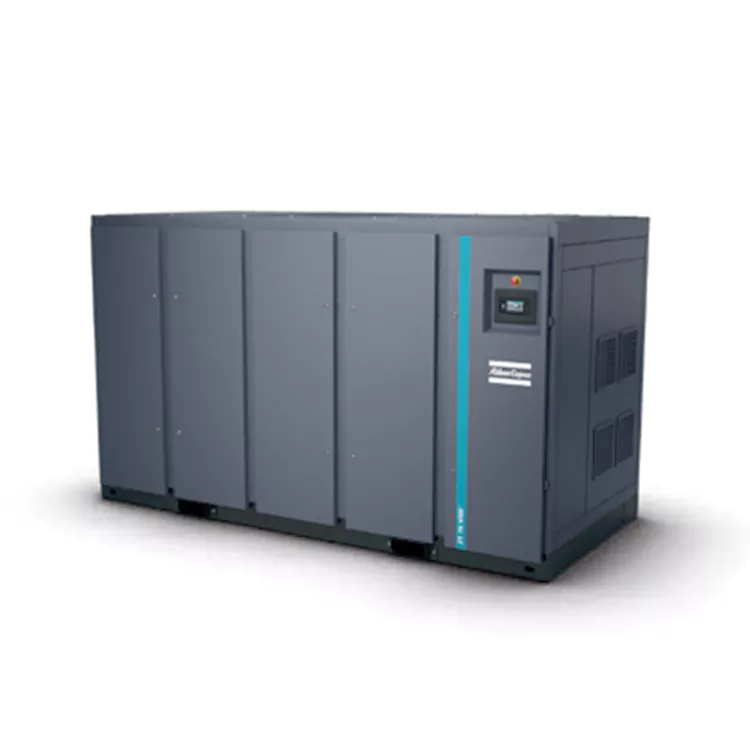

Kompresor Screw Bebas Minyak Eco 55-900kw iki nangkep panas sing ilang iki kanthi efisien:
• Integrated Heat Recovery Skids: Heavy-tugas, puteran banyu terisolasi nyambung langsung menyang sirkuit termal kompresor kanggo harvest panas sampah aman.
• Generasi Banyu Panas 90 ° C: Ngasilake banyu suhu dhuwur sing cocok kanggo pemanasan bangunan mangsa, pemanasan awal boiler, utawa sistem reverse osmosis.
• Kepatuhan Regulasi Dual-Carbon: Nyuda ketergantungan ing boiler bahan bakar fosil, nyuda emisi gas omah kaca pabrik sampeyan.
• Kapasitas pamindahan: 4,2 - 148,5 m³ / min output udhara resik
• Konfigurasi Daya: 55kW nganti 900kW konfigurasi skalabel
• Suhu Output Water Loop: Konsisten ndhuwur 70°C nganti 90°C adhedhasar persiyapan tanduran
• Sertifikasi Kualitas Udara: TÜV certified CLASS 0 nol-lenga tilak pangiriman
ZR/ZT 55-90 (FF) STD
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 55 -7.5STD | 7.5 | 169.7 | 10.2 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -8.6STD | 8.6 | 156.6 | 9.4 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -10 STD | 10 | 140.9 | 8.5 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 75 -7.5STD | 7.5 | 224.7 | 13.5 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -8.6STD | 8.6 | 214.9 | 12.9 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -10 STD | 10 | 205.0 | 12.3 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 90 -7.5STD | 7.5 | 267.2 | 16.0 | 90 | 72 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -8.6STD | 8.6 | 250.9 | 15.1 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -10 STD | 10 | 236.5 | 14.2 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZT 55 -7.5STD | 7.5 | 166.4 | 10.0 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55 -8.6STD | 8.6 | 153.2 | 9.2 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55-10STD | 10 | 137.6 | 8.3 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 75 -7.5STD | 7.5 | 221.3 | 13.3 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75 -8.6STD | 8.6 | 211.6 | 12.7 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75-10STD | 10 | 201.6 | 12.1 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 90 -7.5STD | 7.5 | 263.9 | 15.8 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90 -8.6STD | 8.6 | 247.5 | 14.9 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90-10STD | 10 | 233.1 | 14.0 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
ZR/ZT 75-90 VSD (FF) STD
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD -8.6 STD | 8.6 | 74.7-229.4 | 4.5-13.8 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 75 VSD -10.4 STD | 10.4 | 81.7-202.9 | 4.9-12.2 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 90 VSD -8.6 STD | 8.6 | 74.1-282.5 | 4.4-16.9 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZR 90 VSD -10.4 STD | 10.4 | 75.5-250.5 | 4.5-15.0 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZT 75 VSD -8.6 STD | 8.6 | 71.2-226.0 | 4.3-13.6 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 75 VSD -10.4 STD | 10.4 | 78.2-199.6 | 4.7-12.0 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 90 VSD -8.6 STD | 8.6 | 70.6-279.1 | 4.2-16.7 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
| ZT 90 VSD -10.4 STD | 10.4 | 72.0-247.1 | 4.3-14.8 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
Kondisi referensi kinerja kanggo unit diukur miturut Lampiran C, edisi kaping 4 (2009) saka ISO 1217:
· Kelembapan relatif: 0%
· Tekanan inlet absolut: 1 bar
· Suhu inlet: 20°C Discharge rate (FAD) diukur ing tekanan operasi ing ngisor iki:
Tipe kacepetan konstan:
· -7,5 bar jinis: 7 bar
· -8,6 bar jinis: 7 bar
· -10 bar jinis: 9 bar
Tipe VSD:
· -8,6 bar jinis: 7 bar
· -10,4 bar jinis: 9 bar
· (2) Tingkat tekanan swara emisi bobot kelas A saka workstation (LpWSAd). Diukur miturut ISO 2151:2004 (nggunakake metode scanning intensitas swara 150 9614/2). Faktor koreksi sing mentas ditambahake yaiku nilai sing ora mesthi (KpAd), sing cocog karo kode tes.
· (3) Bobot mung kanggo referensi; bobot nyata sing diwenehake bakal menang.
ZR/ZT 110-160 (FF) STD
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 110 -7.5 STD | 7.5 | 318.2 | 19.1 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -8.6 STD | 8.6 | 297.5 | 17.8 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -10 STD | 10 | 277.6 | 16.7 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 132 -7,5 STD | 7.5 | 362.9 | 21.8 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -8.6 STD | 8.6 | 338.5 | 20.3 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -10 STD | 10 | 314.4 | 18.9 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 145 -7,5 STD | 7.5 | 392.9 | 23.6 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -8.6 STD | 8.6 | 364.1 | 21.8 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -10 STD | 10 | 350.8 | 21.0 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 160 -7.5 STD | 7.5 | 434.0 | 26.0 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -8.6 STD | 8.6 | 418.3 | 25.1 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -10 STD | 10 | 399.0 | 23.9 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZT 110 -7.5 STD | 7.5 | 315.0 | 18.9 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -8.6 STD | 8.6 | 294.2 | 17.6 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -10 STD | 10 | 274.3 | 16.5 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 132 -7.5 STD | 7.5 | 359.6 | 21.6 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -8.6 STD | 8.6 | 335.3 | 20.1 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -10 STD | 10 | 311.1 | 18.7 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 145 -7.5 STD | 7.5 | 389.6 | 23.4 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -8.6 STD | 8.6 | 360.8 | 21.6 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -10 STD | 10 | 347.5 | 20.9 | 145 | 79 | 3126 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -7.5 STD | 7.5 | 430.6 | 25.8 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -8.6 STD | 8.6 | 414.9 | 24.9 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -10 STD | 10 | 395.6 | 23.7 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
ZR/ZT 110-160 VSD (FF) STD
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR110VSD-8.6 STD | 8.6 | 100.5-319.3 | 6.0-19.2 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR110VSD-10.4 STD | 10.4 | 167.1-292.1 | 10.0-17.5 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-8.6 STD | 8.6 | 107.1-357.1 | 6.5-21.4 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-10.4 STD | 10.4 | 166.6-331.0 | 10.0-19.9 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR160VSD-8.6 STD(V1) | 8.6 | 123.3-390.0 | 7.4-23.4 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-10.4 STD(V1) | 10.4 | 166.6-357.8 | 10.0-21.5 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-8.6 STD(V2) | 8.6 | 123.3-411.0 | 7.4-24.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-10.4 STD(V2) | 10.4 | 166.6-377.6 | 10.0-22.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZT 110 VSD-8.6 | 8.6 | 99.9-327.6 | 6.0-19.2 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 110 VSD-10.4 | 10.4 | 165.5-291.9 | 9.9-17.5 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-8.6 | 8.6 | 124.8-357.5 | 7.5-21.4 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-10.4 | 10.4 | 164.9-331.2 | 9.9-19.9 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-8.6 STD(V1) | 8.6 | 143.9-388.8 | 8.6-23.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-10.4 STD(V1) | 10.4 | 164.9-358.2 | 9.9-21.5 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-8.6 STD(V2) | 8.6 | 146.9-438.2 | 8.8-26.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-10.4 STD(V2) | 10.4 | 164.9-378.1 | 9.9-22.7 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
Miturut ISO 1217 Annex C, 4th Edition (2009), kondisi referensi kinerja unit kaya ing ngisor iki:
· Kelembapan relatif: 0%
· Tekanan inlet absolut: 1 bar
· Suhu mlebu: 20°C
FAD pamindahan diukur ing tekanan operasi ing ngisor iki:
Model kacepetan konstan:
-Model 7,5 bar: 7 bar
-8.6 bar model: 7 bar
-10 bar model: 9 bar
Model VSD:
-8.6 bar model: 7 bar
-Model 10,4 bar: 9 bar
(2) Tingkat tekanan swara emisi bobot kelas A saka workstation (LpWSAd). Diukur miturut ISO 2151:2004 (metode scanning intensitas swara ISO 9614/2). Faktor koreksi sing mentas ditambahake KpAd ora mesthi, tundhuk karo kode tes.
(3) V1=380V, V2=400V.
(4) Bobot mung kanggo referensi; bobot nyata bakal menang.
ZR/ZT 200-275 (FF)
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 200 -7.5 | 7.5 | 602.3 | 36.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -8.6 | 8.6 | 552.1 | 33.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -10 | 10 | 506.6 | 30.0 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 250 -7.5 | 7.5 | 718.0 | 43.1 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -8.6 | 8.6 | 684.3 | 41.0 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -10 | 10 | 622.8 | 37.4 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 275 -7.5 | 7.5 | 774.4 | 46.5 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -8.6 | 8.6 | 718.0 | 43.1 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -10 | 10 | 683.9 | 41.0 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -13 | 13 | 561.8 | 33.7 | 275 | 70 | 5250 | 6150 | 5040 | 1662 | 2008 |
| ZT 200 -7.5 | 7.5 | 567.1 | 34.0 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -8.6 | 8.6 | 519.5 | 31.2 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -10 | 10 | 497.4 | 29.8 | 200 | 78 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 250 -7.5 | 7.5 | 711.5 | 42.7 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -8.6 | 8.6 | 676.8 | 40.6 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -10 | 10 | 614.3 | 36.9 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 275 -7.5 | 7.5 | 745.4 | 44.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275 -8.6 | 8.6 | 711.5 | 42.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275-10 | 10 | 676.4 | 40.6 | 275 | 78 | 6030 | 7080 | 5040 | 1662 | 2108 |
ZR/ZT 250-315 VSD (FF)
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 250 VSD -8.6 | 8.6 | 242.6-714.4 | 14.6-42.9 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 250 VSD -10.4 | 10.4 | 234.2-640.2 | 14.1-38.4 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD -8.6 | 8.6 | 242.6-788.1 | 14.6-47.3 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD -10.4 | 10.4 | 234.2-700.0 | 14.1-42.0 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZT 250 VSD -8.6 | 8.6 | 238.0-696.9 | 14.3-41.8 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 250 VSD -10.4 | 10.4 | 386.0-633.4 | 23.2-38.0 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -8.6 | 8.6 | 238.0-739.4 | 14.3-44.4 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -10.4 | 10.4 | 386.0-681.0 | 23.2-40.9 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
- Kelembapan relatif: 0%
- Tekanan inlet absolut: 1 bar
-Suhu inlet: 20 ° ℃
Tingkat Discharge (FAD) diukur ing tekanan operasi ing ngisor iki
Tipe kacepetan konstan:
-7,5 bar jinis: 7 bar
-8.6 bar jinis: 7 bar
-10 bar jinis: 9 bar
Tipe VSD:
-8.6 bar jinis: 7 bar
-10,4 bar jinis: 9 bar
(2) Tingkat tekanan swara emisi bobot kelas A saka workstation (LpWSAd).
Diukur miturut ISO 2151:2004 (nggunakake 150 9614/2 (metode scanning intensitas swara).
Faktor koreksi sing mentas ditambahake yaiku nilai sing ora mesthi (KpAd), sing cocog karo kode tes.
(3) Bobot mung kanggo referensi; bobot nyata sing diwenehake bakal menang.
ZR 300-750
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 300 -7.5 | 7.5 | 774.6 | 46.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -8.6 | 8.6 | 725.7 | 43.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -10 | 10 | 695.1 | 41.7 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -7.5 | 7.5 | 848.0 | 50.9 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -8.6 | 8.6 | 793.1 | 47.6 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -10 | 10 | 766.6 | 46.0 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 355 -7.5 | 7.5 | 939.1 | 56.3 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -8.6 | 8.6 | 877.1 | 52.6 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -10 | 10 | 839.6 | 50.4 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 400 -7.5 | 7.5 | 1034.2 | 62.1 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -8.6 | 8.6 | 963.9 | 57.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -10 | 10 | 930.5 | 55.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 425 -7.5 | 7.5 | 1143.9 | 68.6 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 425 -8.6 | 8.6 | 1063.1 | 63.8 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 450 -7.5 | 7.5 | 1275.7 | 76.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -8.6 | 8.6 | 1191.8 | 71.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -10 | 10 | 1106.3 | 66.3 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 500 -7.5 | 7.5 | 1399.1 | 78.3 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -8.6 | 8.6 | 1305.2 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -10 | 10 | 1217.8 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 630 -7.5 | 7.5 | 1715.0 | 102.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -8.6 | 8.6 | 1595.0 | 95.7 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -10 | 10 | 1484.1 | 88.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 750 -7.5 | 7.5 | 2046.2 | 122.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -8.6 | 8.6 | 1827.4 | 109.6 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -10 | 10 | 1696.7 | 101.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 |
ZR 355-900VSD
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 355 VSD -8.6 | 8.6 | 371.2-1037.5 | 22.3-62.2 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 355 VSD -10.4 | 10.4 | 374.4-942.4 | 22.5-56.5 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 400 VSD -8.6 | 8.6 | 371.2-1120.9 | 22.3-67.3 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 400 VSD -10.4 | 10.4 | 374.4-998.6 | 22.5-59.9 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 500 VSD -10.4 | 10.4 | 374.4-1177.9 | 22.5-70.7 | 81 | 81 | 9190 | 4075 | 2120 | 2400 | |
| ZR 700 VSD -8.6 | 8.6 | 374.4-2061.8 | 54.9-123.7 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 700 VSD -10.4 | 10.4 | 849.7-1840.5 | 51.0-110.4 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 900 VSD -8.6 | 8.6 | 930.7-2475.4 | 55.8-148.5 | 83 | 83 | 12600 | 4660 | 2120 | 2470 | |
| ZR 900 VSD -10.4 | 10.4 | 864.8-1873.2 | 51.9-112.4 | 83 | 83 | 12600 | 4660 | 2120 | 2470 |
Kondisi referensi kinerja kanggo unit diukur miturut Lampiran C, edisi kaping 4 (2009) saka ISO 1217:
· Kelembapan relatif: 0%
· Tekanan inlet absolut: 1 bar
· Suhu inlet: 20°C Discharge rate (FAD) diukur ing tekanan operasi ing ngisor iki:
Tipe kacepetan konstan:
· -7,5 bar jinis: 7 bar
· -8,6 bar jinis: 7 bar
· -10 bar jinis: 9 bar
Tipe VSD:
· -8,6 bar jinis: 7 bar
· -10,4 bar jinis: 9 bar
· (2) Tingkat tekanan swara emisi bobot kelas A saka workstation (LpWSAd). Diukur miturut ISO 2151:2004 (nggunakake metode scanning intensitas swara 150 9614/2). Faktor koreksi sing mentas ditambahake yaiku nilai sing ora mesthi (KpAd), sing cocog karo kode tes.
· (3) Bobot mung kanggo referensi; bobot nyata sing diwenehake bakal menang.
ZR 200X-400X
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 200X -7.5 | 7.5 | 623.1 | 37.4 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -8.6 | 8.6 | 601.9 | 36.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -10 | 10 | 551.7 | 33.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 250X -7.5 | 7.5 | 717.7 | 43.1 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 250X -8.6 | 8.6 | 683.8 | 41.0 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 315X -7.5 | 7.5 | 939.0 | 56.3 | 315 | 76 | 7950 | 3700 | 2120 | 2400 |
| ZR 355X -7.5 | 7.5 | 1034.2 | 62.1 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -8.6 | 8.6 | 963.5 | 57.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -10 | 10 | 930.2 | 55.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 400X -7.5 | 7.5 | 1143.8 | 68.6 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
| ZR 400X -8.6 | 8.6 | 1062.7 | 63.8 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
ZR/ZT 75-160 VSD+
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 90 VSD+ | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 110 VSD+ | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 132 VSD+ | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 160 VSD+ | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 75 VSD+ | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 90 VSD+ | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 110 VSD+ | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 132 VSD+ | 10.4 | 78.8-377.5 | 4.7-22.7 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-409.0 | 4.7-24.5 | 74 | 3150 | 3400 | 1654 | 2000 |
| ZT 160 VSD+ | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3150 | 3400 | 1654 | 2000 |
ZR/ZT 75-160 VSD+ FF
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ FF | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 90 VSD+ FF | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 110 VSD+ FF | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 132 VSD+ FF | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 145 VSD+ FF | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZR 160 VSD+ FF | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZT 75 VSD+ FF | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 90 VSD+ FF | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 110 VSD+ FF | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 132 VSD+ FF | 10.4 | 107.0-377.5 | 6.4-22.7 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 145 VSD+ FF | 10.4 | 118.0-409.0 | 7.1-24.5 | 74 | 3790 | 4085 | 1654 | 2000 |
| ZT 160 VSD+ FF | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3790 | 4085 | 1654 | 2000 |
Kondisi referensi kinerja kanggo unit diukur miturut Lampiran C, edisi kaping 4 (2009) saka ISO 1217:
· Kelembapan relatif: 0%
· Tekanan inlet absolut: 1 bar
· Suhu inlet: 20°C Discharge rate (FAD) diukur ing tekanan operasi ing ngisor iki:
Tipe kacepetan konstan:
· -7,5 bar jinis: 7 bar
· -8,6 bar jinis: 7 bar
· -10 bar jinis: 9 bar
Tipe VSD:
· -8,6 bar jinis: 7 bar
· -10,4 bar jinis: 9 bar
· (2) Tingkat tekanan swara emisi bobot kelas A saka workstation (LpWSAd). Diukur miturut ISO 2151:2004 (nggunakake metode scanning intensitas swara 150 9614/2). Faktor koreksi sing mentas ditambahake yaiku nilai sing ora mesthi (KpAd), sing cocog karo kode tes.
· (3) Bobot mung kanggo referensi; bobot nyata sing diwenehake bakal menang.
DECHUAN masang sawetara unit centrifugal 4500HP ing fasilitas farmasi, nggabungake penukar panas khusus. Sistem kasebut ngasilake banyu panas nganti 90 ° C nalika njaga operasi kompresor sing stabil. Panas sing wis pulih iki dialihake menyang preheat feedwater boiler lan nglakokake produksi banyu osmosis mbalikke, nyedhiyakake ngasilake ekonomi sing signifikan.
Operasi pertambangan dipasang enem kompresor 375kW lan loro 250kW kanthi sistem banyu suhu konstan sekunder. Panas sing dibalekake ngganti boiler uap suhu dhuwur sing sadurunge digunakake kanggo siram buruh, ngirit ewu ton uap saben taun nalika nyukupi kabeh syarat volume banyu panas.
Saben Kompresor Screw Bebas Minyak Eco 55-900kw dipasang ing kerangka manajemen lingkungan sing ketat. Kita verifikasi manawa kabeh bahan sing digunakake-saka katup mekanis sing kurang mbukak nganti bundel tabung stainless steel internal-digawe lan diproses kanthi lestari, njamin siklus urip sing resik saka pabrik menyang pabrik sampeyan.
A: kompresi udara kanthi alami ngasilake energi termal sing signifikan. Tinimbang ngeculake panas iki ing njaba liwat penggemar cooling, sistem kita nyalurake menyang penukar panas piring sekunder. Energi iki bisa dadi pra-panas banyu ketel utawa udan tanduran, nyuda beban ing pemanas bahan bakar fosil fasilitas sampeyan.
A: Nggih. Sistem kasebut nduweni katup bypass otomatis. Nalika panjaluk banyu panas mudhun nalika musim panas, sistem kasebut ngarahake energi termal sing berlebihan bali menyang puteran pendinginan standar kanggo mesthekake produksi udhara tanpa gangguan.
A: Ora. Lingkaran sirkulasi banyu internal diimbangi nggunakake sistem kontrol suhu sing tepat. Iki njamin suhu nyedhot tahap kapindho kompresor tetep stabil, nglindhungi efisiensi volumetrik mesin.
Hak Cipta © 2025 Decuan Compressor (Shanghai) Co., Ltd. Kabeh Hak Dilindungi.
