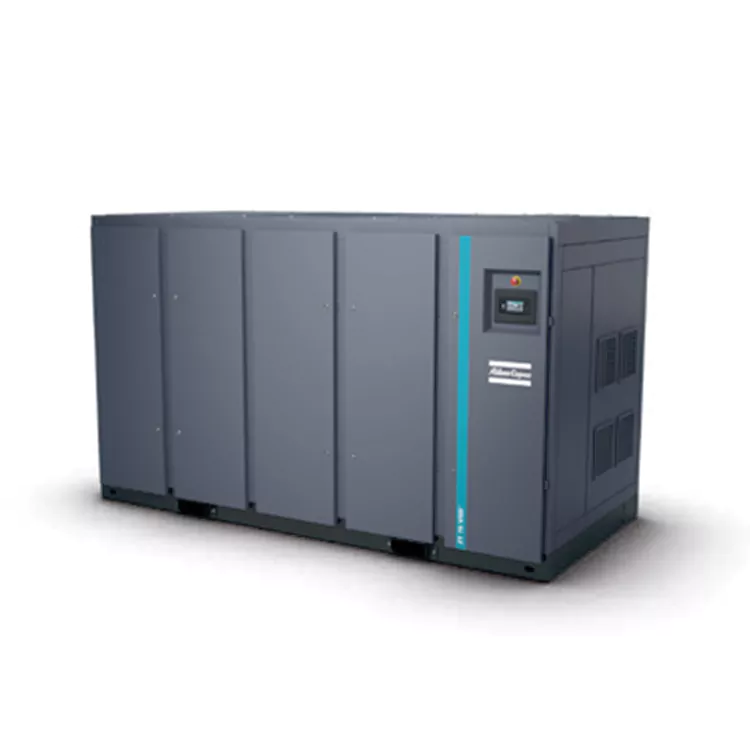

DECHUAN nyedhiyakake Kompresor Udara Screw Bebas Minyak Dual-Drive VSD kanggo pengadaan grosir global. Nampilake rong motor magnet permanen independen, mesin iki ngoptimalake panggunaan energi ing owah-owahan manufaktur variabel.
Kanggo ngedhunake tagihan listrik pabrik, pesen saka pakar China Dual-Drive VSD Oil-Free Screw Air Compressor supplier menehi bali langsung ing investasi. Desain magnet permanen dual DECHUAN ngilangake kerugian kopling mekanik tradisional lan ngidini pangaturan aliran sudhut saka 20% nganti 100%, cocog karo beban alat sing fluktuatif kanthi tepat.
Kompresor drive frekuensi variabel tradisional nggunakake motor siji kanggo nguripake rotor sekrup tekanan dhuwur lan tekanan rendah liwat mekanisme gear sing dienggo bareng. Iki nyebabake kerugian mekanik nalika mlaku kanthi kecepatan rendah. Kompresor udara nggunakake arsitektur pamisah unggul:
• Motors Magnet permanen IE5 Independen: Tahap kompresor tekanan rendah lan tekanan dhuwur didorong dening motor magnet permanen IP66 sing kapisah. Saben tataran mlaku ing profil kacepetan optimal dhewe.
• Wide Flow Regulasi Range: Inverter frekuensi adat kita entuk panyesuaian aliran sing mantep ing antarane 20% lan 100%, kanthi ngilangi "windows kacepetan" sing mbatesi sing ditemokake ing sistem motor tunggal ngisor.
• Ora Tekanan Over-Compression: Sistem njogo fluktuasi meksa line strictly ing 0,10 bar, nyegah sampah energi gadhah over-pressurizing kothak pabrik.
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 55 -7.5STD | 7.5 | 169.7 | 10.2 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -8.6STD | 8.6 | 156.6 | 9.4 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -10 STD | 10 | 140.9 | 8.5 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 75 -7.5STD | 7.5 | 224.7 | 13.5 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -8.6STD | 8.6 | 214.9 | 12.9 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -10 STD | 10 | 205.0 | 12.3 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 90 -7.5STD | 7.5 | 267.2 | 16.0 | 90 | 72 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -8.6STD | 8.6 | 250.9 | 15.1 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -10 STD | 10 | 236.5 | 14.2 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZT 55 -7.5STD | 7.5 | 166.4 | 10.0 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55 -8.6STD | 8.6 | 153.2 | 9.2 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55-10STD | 10 | 137.6 | 8.3 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 75 -7.5STD | 7.5 | 221.3 | 13.3 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75 -8.6STD | 8.6 | 211.6 | 12.7 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75-10STD | 10 | 201.6 | 12.1 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 90 -7.5STD | 7.5 | 263.9 | 15.8 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90 -8.6STD | 8.6 | 247.5 | 14.9 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90-10STD | 10 | 233.1 | 14.0 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
ZR/ZT 75-90 VSD (FF) STD
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD -8.6 STD | 8.6 | 74.7-229.4 | 4.5-13.8 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 75 VSD -10.4 STD | 10.4 | 81.7-202.9 | 4.9-12.2 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 90 VSD -8.6 STD | 8.6 | 74.1-282.5 | 4.4-16.9 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZR 90 VSD -10.4 STD | 10.4 | 75.5-250.5 | 4.5-15.0 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZT 75 VSD -8.6 STD | 8.6 | 71.2-226.0 | 4.3-13.6 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 75 VSD -10.4 STD | 10.4 | 78.2-199.6 | 4.7-12.0 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 90 VSD -8.6 STD | 8.6 | 70.6-279.1 | 4.2-16.7 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
| ZT 90 VSD -10.4 STD | 10.4 | 72.0-247.1 | 4.3-14.8 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
Kondisi referensi kinerja kanggo unit diukur miturut Lampiran C, edisi kaping 4 (2009) saka ISO 1217:
· Kelembapan relatif: 0%
· Tekanan inlet absolut: 1 bar
· Suhu inlet: 20°C Discharge rate (FAD) diukur ing tekanan operasi ing ngisor iki:
Tipe kacepetan konstan:
· -7,5 bar jinis: 7 bar
· -8,6 bar jinis: 7 bar
· -10 bar jinis: 9 bar
Tipe VSD:
· -8,6 bar jinis: 7 bar
· -10,4 bar jinis: 9 bar
· (2) Tingkat tekanan swara emisi bobot kelas A saka workstation (LpWSAd). Diukur miturut ISO 2151:2004 (nggunakake metode scanning intensitas swara 150 9614/2). Faktor koreksi sing mentas ditambahake yaiku nilai sing ora mesthi (KpAd), sing cocog karo kode tes.
· (3) Bobot mung kanggo referensi; bobot nyata sing diwenehake bakal menang.
ZR/ZT 110-160 (FF) STD
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 110 -7.5 STD | 7.5 | 318.2 | 19.1 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -8.6 STD | 8.6 | 297.5 | 17.8 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -10 STD | 10 | 277.6 | 16.7 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 132 -7,5 STD | 7.5 | 362.9 | 21.8 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -8.6 STD | 8.6 | 338.5 | 20.3 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -10 STD | 10 | 314.4 | 18.9 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 145 -7,5 STD | 7.5 | 392.9 | 23.6 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -8.6 STD | 8.6 | 364.1 | 21.8 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -10 STD | 10 | 350.8 | 21.0 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 160 -7.5 STD | 7.5 | 434.0 | 26.0 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -8.6 STD | 8.6 | 418.3 | 25.1 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -10 STD | 10 | 399.0 | 23.9 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZT 110 -7.5 STD | 7.5 | 315.0 | 18.9 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -8.6 STD | 8.6 | 294.2 | 17.6 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -10 STD | 10 | 274.3 | 16.5 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 132 -7.5 STD | 7.5 | 359.6 | 21.6 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -8.6 STD | 8.6 | 335.3 | 20.1 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -10 STD | 10 | 311.1 | 18.7 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 145 -7.5 STD | 7.5 | 389.6 | 23.4 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -8.6 STD | 8.6 | 360.8 | 21.6 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -10 STD | 10 | 347.5 | 20.9 | 145 | 79 | 3126 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -7.5 STD | 7.5 | 430.6 | 25.8 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -8.6 STD | 8.6 | 414.9 | 24.9 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -10 STD | 10 | 395.6 | 23.7 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
ZR/ZT 110-160 VSD (FF) STD
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR110VSD-8.6 STD | 8.6 | 100.5-319.3 | 6.0-19.2 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR110VSD-10.4 STD | 10.4 | 167.1-292.1 | 10.0-17.5 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-8.6 STD | 8.6 | 107.1-357.1 | 6.5-21.4 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-10.4 STD | 10.4 | 166.6-331.0 | 10.0-19.9 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR160VSD-8.6 STD(V1) | 8.6 | 123.3-390.0 | 7.4-23.4 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-10.4 STD(V1) | 10.4 | 166.6-357.8 | 10.0-21.5 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-8.6 STD(V2) | 8.6 | 123.3-411.0 | 7.4-24.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-10.4 STD(V2) | 10.4 | 166.6-377.6 | 10.0-22.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZT 110 VSD-8.6 | 8.6 | 99.9-327.6 | 6.0-19.2 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 110 VSD-10.4 | 10.4 | 165.5-291.9 | 9.9-17.5 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-8.6 | 8.6 | 124.8-357.5 | 7.5-21.4 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-10.4 | 10.4 | 164.9-331.2 | 9.9-19.9 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-8.6 STD(V1) | 8.6 | 143.9-388.8 | 8.6-23.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-10.4 STD(V1) | 10.4 | 164.9-358.2 | 9.9-21.5 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-8.6 STD(V2) | 8.6 | 146.9-438.2 | 8.8-26.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-10.4 STD(V2) | 10.4 | 164.9-378.1 | 9.9-22.7 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
Miturut ISO 1217 Annex C, 4th Edition (2009), kondisi referensi kinerja unit kaya ing ngisor iki:
· Kelembapan relatif: 0%
· Tekanan inlet absolut: 1 bar
· Suhu mlebu: 20°C
FAD pamindahan diukur ing tekanan operasi ing ngisor iki:
Model kacepetan konstan:
-Model 7,5 bar: 7 bar
-8.6 bar model: 7 bar
-10 bar model: 9 bar
Model VSD:
-8.6 bar model: 7 bar
-Model 10,4 bar: 9 bar
(2) Tingkat tekanan swara emisi bobot kelas A saka workstation (LpWSAd). Diukur miturut ISO 2151:2004 (metode scanning intensitas swara ISO 9614/2). Faktor koreksi sing mentas ditambahake KpAd ora mesthi, tundhuk karo kode tes.
(3) V1=380V, V2=400V.
(4) Bobot mung kanggo referensi; bobot nyata bakal menang.
ZR/ZT 200-275 (FF)
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 200 -7.5 | 7.5 | 602.3 | 36.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -8.6 | 8.6 | 552.1 | 33.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -10 | 10 | 506.6 | 30.0 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 250 -7.5 | 7.5 | 718.0 | 43.1 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -8.6 | 8.6 | 684.3 | 41.0 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -10 | 10 | 622.8 | 37.4 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 275 -7.5 | 7.5 | 774.4 | 46.5 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -8.6 | 8.6 | 718.0 | 43.1 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -10 | 10 | 683.9 | 41.0 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -13 | 13 | 561.8 | 33.7 | 275 | 70 | 5250 | 6150 | 5040 | 1662 | 2008 |
| ZT 200 -7.5 | 7.5 | 567.1 | 34.0 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -8.6 | 8.6 | 519.5 | 31.2 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -10 | 10 | 497.4 | 29.8 | 200 | 78 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 250 -7.5 | 7.5 | 711.5 | 42.7 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -8.6 | 8.6 | 676.8 | 40.6 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -10 | 10 | 614.3 | 36.9 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 275 -7.5 | 7.5 | 745.4 | 44.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275 -8.6 | 8.6 | 711.5 | 42.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275-10 | 10 | 676.4 | 40.6 | 275 | 78 | 6030 | 7080 | 5040 | 1662 | 2108 |
ZR/ZT 250-315 VSD (FF)
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 250 VSD -8.6 | 8.6 | 242.6-714.4 | 14.6-42.9 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 250 VSD -10.4 | 10.4 | 234.2-640.2 | 14.1-38.4 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD -8.6 | 8.6 | 242.6-788.1 | 14.6-47.3 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD -10.4 | 10.4 | 234.2-700.0 | 14.1-42.0 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZT 250 VSD -8.6 | 8.6 | 238.0-696.9 | 14.3-41.8 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 250 VSD -10.4 | 10.4 | 386.0-633.4 | 23.2-38.0 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -8.6 | 8.6 | 238.0-739.4 | 14.3-44.4 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -10.4 | 10.4 | 386.0-681.0 | 23.2-40.9 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
- Kelembapan relatif: 0%
- Tekanan inlet absolut: 1 bar
-Suhu inlet: 20 ° ℃
Tingkat Discharge (FAD) diukur ing tekanan operasi ing ngisor iki
Tipe kacepetan konstan:
-7,5 bar jinis: 7 bar
-8.6 bar jinis: 7 bar
-10 bar jinis: 9 bar
Tipe VSD:
-8.6 bar jinis: 7 bar
-10,4 bar jinis: 9 bar
(2) Tingkat tekanan swara emisi bobot kelas A saka workstation (LpWSAd).
Diukur miturut ISO 2151:2004 (nggunakake 150 9614/2 (metode scanning intensitas swara).
Faktor koreksi sing mentas ditambahake yaiku nilai sing ora mesthi (KpAd), sing cocog karo kode tes.
(3) Bobot mung kanggo referensi; bobot nyata sing diwenehake bakal menang.
ZR 300-750
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 300 -7.5 | 7.5 | 774.6 | 46.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -8.6 | 8.6 | 725.7 | 43.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -10 | 10 | 695.1 | 41.7 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -7.5 | 7.5 | 848.0 | 50.9 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -8.6 | 8.6 | 793.1 | 47.6 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -10 | 10 | 766.6 | 46.0 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 355 -7.5 | 7.5 | 939.1 | 56.3 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -8.6 | 8.6 | 877.1 | 52.6 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -10 | 10 | 839.6 | 50.4 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 400 -7.5 | 7.5 | 1034.2 | 62.1 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -8.6 | 8.6 | 963.9 | 57.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -10 | 10 | 930.5 | 55.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 425 -7.5 | 7.5 | 1143.9 | 68.6 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 425 -8.6 | 8.6 | 1063.1 | 63.8 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 450 -7.5 | 7.5 | 1275.7 | 76.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -8.6 | 8.6 | 1191.8 | 71.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -10 | 10 | 1106.3 | 66.3 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 500 -7.5 | 7.5 | 1399.1 | 78.3 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -8.6 | 8.6 | 1305.2 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -10 | 10 | 1217.8 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 630 -7.5 | 7.5 | 1715.0 | 102.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -8.6 | 8.6 | 1595.0 | 95.7 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -10 | 10 | 1484.1 | 88.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 750 -7.5 | 7.5 | 2046.2 | 122.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -8.6 | 8.6 | 1827.4 | 109.6 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -10 | 10 | 1696.7 | 101.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 |
ZR 355-900VSD
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Bobot-Kinerja Penuh (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 355 VSD -8.6 | 8.6 | 371.2-1037.5 | 22.3-62.2 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 355 VSD -10.4 | 10.4 | 374.4-942.4 | 22.5-56.5 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 400 VSD -8.6 | 8.6 | 371.2-1120.9 | 22.3-67.3 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 400 VSD -10.4 | 10.4 | 374.4-998.6 | 22.5-59.9 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 500 VSD -10.4 | 10.4 | 374.4-1177.9 | 22.5-70.7 | 81 | 81 | 9190 | 4075 | 2120 | 2400 | |
| ZR 700 VSD -8.6 | 8.6 | 374.4-2061.8 | 54.9-123.7 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 700 VSD -10.4 | 10.4 | 849.7-1840.5 | 51.0-110.4 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 900 VSD -8.6 | 8.6 | 930.7-2475.4 | 55.8-148.5 | 83 | 83 | 12600 | 4660 | 2120 | 2470 | |
| ZR 900 VSD -10.4 | 10.4 | 864.8-1873.2 | 51.9-112.4 | 83 | 83 | 12600 | 4660 | 2120 | 2470 |
Kondisi referensi kinerja kanggo unit diukur miturut Lampiran C, edisi kaping 4 (2009) saka ISO 1217:
· Kelembapan relatif: 0%
· Tekanan inlet absolut: 1 bar
· Suhu inlet: 20°C Discharge rate (FAD) diukur ing tekanan operasi ing ngisor iki:
Tipe kacepetan konstan:
· -7,5 bar jinis: 7 bar
· -8,6 bar jinis: 7 bar
· -10 bar jinis: 9 bar
Tipe VSD:
· -8,6 bar jinis: 7 bar
· -10,4 bar jinis: 9 bar
· (2) Tingkat tekanan swara emisi bobot kelas A saka workstation (LpWSAd). Diukur miturut ISO 2151:2004 (nggunakake metode scanning intensitas swara 150 9614/2). Faktor koreksi sing mentas ditambahake yaiku nilai sing ora mesthi (KpAd), sing cocog karo kode tes.
· (3) Bobot mung kanggo referensi; bobot nyata sing diwenehake bakal menang.
ZR 200X-400X
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Daya sing dipasang (kW) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 200X -7.5 | 7.5 | 623.1 | 37.4 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -8.6 | 8.6 | 601.9 | 36.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -10 | 10 | 551.7 | 33.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 250X -7.5 | 7.5 | 717.7 | 43.1 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 250X -8.6 | 8.6 | 683.8 | 41.0 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 315X -7.5 | 7.5 | 939.0 | 56.3 | 315 | 76 | 7950 | 3700 | 2120 | 2400 |
| ZR 355X -7.5 | 7.5 | 1034.2 | 62.1 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -8.6 | 8.6 | 963.5 | 57.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -10 | 10 | 930.2 | 55.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 400X -7.5 | 7.5 | 1143.8 | 68.6 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
| ZR 400X -8.6 | 8.6 | 1062.7 | 63.8 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
ZR/ZT 75-160 VSD+
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 90 VSD+ | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 110 VSD+ | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 132 VSD+ | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 160 VSD+ | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 75 VSD+ | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 90 VSD+ | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 110 VSD+ | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 132 VSD+ | 10.4 | 78.8-377.5 | 4.7-22.7 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-409.0 | 4.7-24.5 | 74 | 3150 | 3400 | 1654 | 2000 |
| ZT 160 VSD+ | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3150 | 3400 | 1654 | 2000 |
ZR/ZT 75-160 VSD+ FF
| Model | Tekanan exhaust maksimum (bar) | FAD Lalu Lintas(l/s) | FAD Lalu Lintas(m³/min) | Tingkat Kebisingan (dB(A)) | Bobot-Standar (kg) | Ukuran L (mm) | Ukuran W (mm) | Ukuran H (mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ FF | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 90 VSD+ FF | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 110 VSD+ FF | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 132 VSD+ FF | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 145 VSD+ FF | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZR 160 VSD+ FF | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZT 75 VSD+ FF | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 90 VSD+ FF | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 110 VSD+ FF | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 132 VSD+ FF | 10.4 | 107.0-377.5 | 6.4-22.7 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 145 VSD+ FF | 10.4 | 118.0-409.0 | 7.1-24.5 | 74 | 3790 | 4085 | 1654 | 2000 |
| ZT 160 VSD+ FF | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3790 | 4085 | 1654 | 2000 |
Kondisi referensi kinerja kanggo unit diukur miturut Lampiran C, edisi kaping 4 (2009) saka ISO 1217:
· Kelembapan relatif: 0%
· Tekanan inlet absolut: 1 bar
· Suhu inlet: 20°C Discharge rate (FAD) diukur ing tekanan operasi ing ngisor iki:
Tipe kacepetan konstan:
· -7,5 bar jinis: 7 bar
· -8,6 bar jinis: 7 bar
· -10 bar jinis: 9 bar
Tipe VSD:
· -8,6 bar jinis: 7 bar
· -10,4 bar jinis: 9 bar
· (2) Tingkat tekanan swara emisi bobot kelas A saka workstation (LpWSAd). Diukur miturut ISO 2151:2004 (nggunakake metode scanning intensitas swara 150 9614/2). Faktor koreksi sing mentas ditambahake yaiku nilai sing ora mesthi (KpAd), sing cocog karo kode tes.
· (3) Bobot mung kanggo referensi; bobot nyata sing diwenehake bakal menang.
Kompresor kacepetan tetep tradisional mlaku kanthi daya listrik lengkap sanajan piranti pabrik sampeyan mung mbutuhake output udara 40%. Keluwihan udara sing dikompres mung dibuwang menyang atmosfer utawa dibuwang sajrone siklus unloading sing dawa lan ora efisien ing ngendi motor muter tanpa nindakake pakaryan sing migunani.
Saben Kompresor Udara Screw Bebas Oli Dual-Drive VSD dilengkapi karo hub manajemen remot Internet of Things (IoT). Insinyur pabrik bisa kanthi aman mriksa kacepetan motor, daya tarik, lan tandha layanan saka komputer utawa piranti seluler sing sah. Transparansi iki ngidini tim pangopènan kanggo verifikasi tabungan energi sing tepat minggu-liwat-minggu.
Pabrik-pabrik tekstil nganggo mesin tenun sing terus-terusan ing ngendi tensioning benang mbutuhake tekanan udara sing stabil, nanging volume sing dibutuhake terus-terusan dadi siklus tenun. DECHUAN masang kompresor ing pabrik tekstil utama. Sistem magnet permanen dual IE5 nglacak owah-owahan dinamis pabrik kasebut kanthi cepet, njaga tekanan garis tetep ing 0,10 bar lan ngiris tagihan daya kompresor saben wulan kanthi 35%.
A: Ora. Kabeh lemantun DECHUAN VSD fitur dibangun ing saringan harmonik lan shielding. Dheweke wis disertifikasi kanthi lengkap kanggo mesthekake yen elektronik kompresor ora ngrusak saluran listrik lokal utawa mengaruhi peralatan manufaktur otomatis sing sensitif.
A: Ora. Motor magnet permanen IE5 sing dirancang khusus nggunakake omah bantalan sing dilumasi kanthi lengkap, digabungake langsung karo sistem pelumasan tengah kompresor. Desain iki ngalangi rereget lan kelembapan sekitar nalika ngilangi jadwal pelumas manual.
A: Rating IP66 njamin panyegelan lengkap marang bledug, serat, lan jet banyu tekanan dhuwur. Iki ngidini motor magnet permanen bisa digunakake kanthi andal ing lingkungan tekstil sing lembab lan abot tanpa sirkuit cendhak internal.
Hak Cipta © 2025 Decuan Compressor (Shanghai) Co., Ltd. Kabeh Hak Dilindungi.
